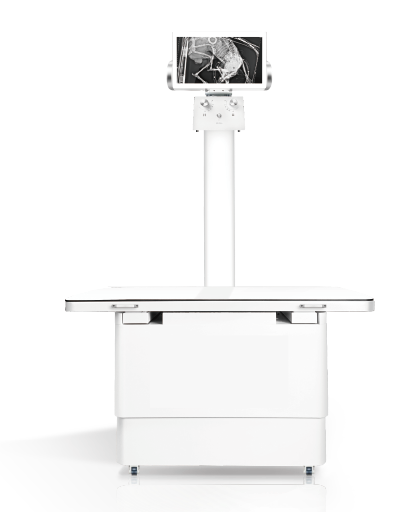

Veterinary DR Solution
BDR-12
Veterinary DR Solution
Veterinary DR Solution

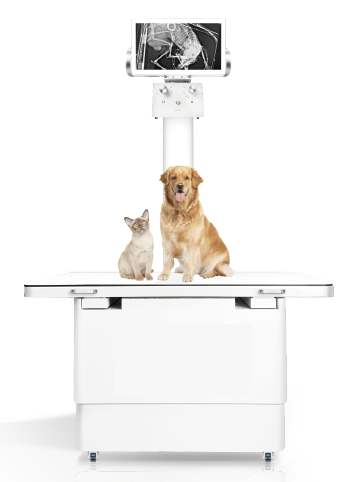

– Smallfocus and high resolution imaging ,suitable for cat/dogs and other pet
-Shortestexposure time1.2ms/pertime
-Reduce misdiagnosis due to shortness of breath, nervousness, and tremors
*Cesium iodide evaporation technology ,low radiation ,High DQE 3.6Lp/mm limiting resolution
*DAEC tech parameters adjustment automatically
High Generator
√Real-time equipment diagnosis and servic
√Remote maintenance and upgrade
√Online EQC system
√Provide remote onllne technlcal support and tralning

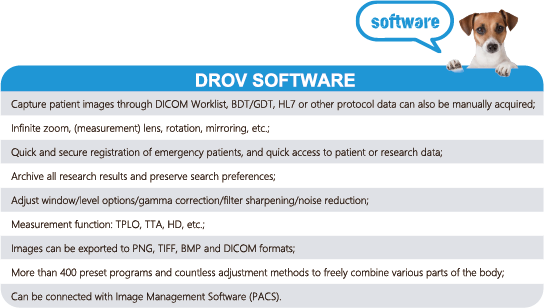

√More than 400 preset programs and countless adjustment methods to freely combine various parts of the body
√Quick and secure registration of emergency patients, quicksearch for patients or research digital rights
√Support more than 10 national languages.
√300kHz UHF inverter frequency
√KV ripple coefficient is less than 1%, output is stable
√Lowar exposure dose
√Double focus
√Renders clear imagas
Min Radiation room size :2*1.5M
WidthofDoor:65cm
Power supply : 220V single-phase three-wire
High voltage independent power supply
Dimensional requirements
Power supply voltage: single-phase three-wire
system 220V±22V Power frequency: 50Hz ± 1Hz
Nominal current: 400ma
Maximum output power: 32kW
Working frequency≥300kHz
Maximum peak tube voltage: 125kV
Detector: CareRay1800Le
Sensor/Scintillator:_ Silicon/Cesium
Iodide Dimensions :460*460*15mm
Spatial resolution:3.61p/mm
A/B conversion: 16bits
Pixek size :140μm
Effective area: 17*17 inches
