MX9 Elite 3-in-1 Wireless Handheld Ultrasound Scanner – Red Dot Design Award, Whole-Body HD Imaging Device - Enabling Better, Smarter, Safer Healthcare | BMV Group

Description

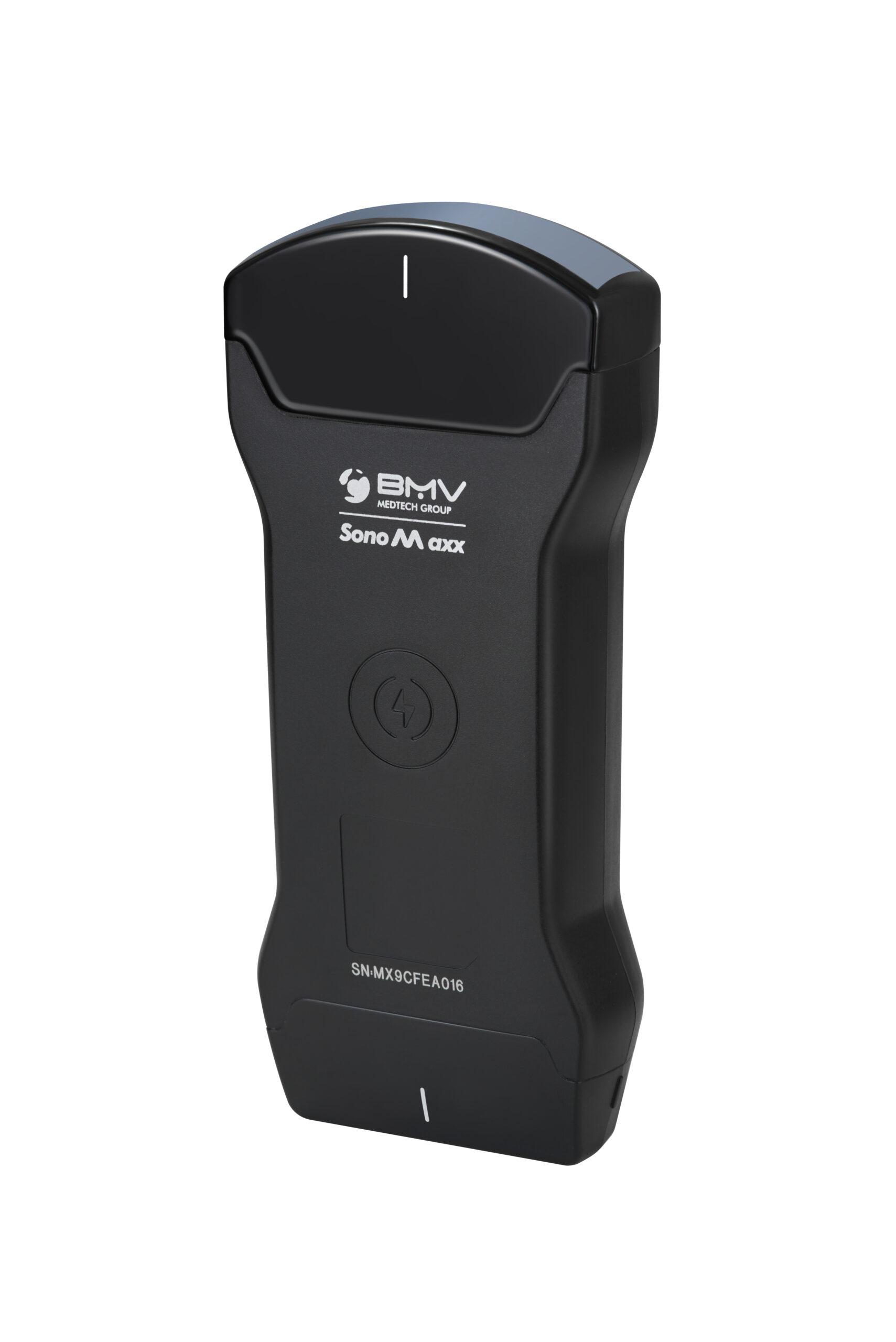

MX9 Elite is a high-end portable wireless ultrasound imaging system awarded the Red Dot Design Award, featuring innovative 2-in-1/3-in-1 multi-probe integration. It switches between shallow, deep and cardiac scans by flipping, no probe replacement needed. Weighing only 260g with a compact size of 157×70×30mm, it delivers ultra-clear details with 192 channels, 128 elements and 18fps high-speed imaging. Supporting full wireless connection and charging, with a built-in replaceable battery for all-day work, it is compatible with smartphones and tablets across multiple systems. Widely applicable in hospitals, emergencies, telemedicine and medical education, it provides efficient and accurate diagnostic support for clinical practice.

MX9 Elite combines Red Dot Design, multi-probe integration, HD wireless connectivity, portability and long battery life. Easy to disinfect and highly compatible, it is an efficient diagnostic tool for multi-clinical scenarios with outstanding cost-effectiveness.

• Red Dot Design + Multi-Probe Integration: Winner of the Red Dot Design Award, one probe integrates linear, convex, phased array and other functions, covering whole-body examinations, flipping to switch scanning modes, improving diagnostic efficiency.
• Full Wireless Convenience: Wirelessly connects to iOS/Android devices and supports wireless charging, freeing from cables; easy to disinfect, reducing contact points and infection risks in medical settings.
• HD High-Performance Imaging: 192 channels + 128 elements, 18fps imaging speed, advanced digital imaging technology captures fine lesions; multiple display modes (B, B+M, Color, etc.) ensure precise diagnosis.
• Long Battery Life + Ultra-Portable: Only 260g, pocket-sized for mobile scenarios such as bedside and outdoor; replaceable battery + long standby time meets all-day continuous work needs.
• Multi-Scene Compatibility & Expansion: Preloaded with applications for abdomen, cardiac, obstetrics and other body parts; intelligent terminal platform supports function and storage expansion, adapting to multi-department and telemedicine needs.

Category	Detailed Specifications
Product Award	Red Dot Design Award
Probe Configuration	2-in-1/3-in-1 Multiple Options (Linear+Convex/Linear+Phased Array/Convex+Microconvex, etc., including Endocavity and Transrectal Probes)
Core Performance	192 Channels, 128 Elements
Frequency Range	Convex: 3.5/5MHz; Linear: 7.5/10MHz; Cardiac: 2.5/5MHz; Microconvex: 5/7MHz; Endocavity: 6.5/8.5MHz
Scanning Depth	Convex: 90~305mm; Linear: 20~100mm; Cardiac: 90~190mm; Microconvex: 60~160mm
Imaging Performance	18fps, Supports B, B+M, Color, PW, PDI Display Modes
Measurement Functions	Length, Area/Circumference, Angle, Distance, Gestational Age (CRL, BPD, etc.), Estimated Fetal Weight (EFW), Heart Rate, etc.
Device Dimensions	157(h)×70(w)×30(d)mm
Device Weight	Approximately 260g (0.6lbs)
Battery Configuration	Built-in Replaceable Battery, Supports Wireless Charging
Compatible Systems	iOS, Android (Smartphones, Tablets)
Preset Applications	Abdomen, Gynecology, Obstetrics, Cardiology, Urology, Kidney, Lung, Thyroid, Vascular, Breast, MSK, Nerve, etc.
Core Advantages	Full Wireless Operation, Easy to Disinfect, Multi-Probe Integration, Intelligent Expansion Functions

PA10-2 HD Ultrasound Probe

Transducer Type: Phased+Linear+Convex 1 transducer

Frequency: Convex+Phased 3.5MHz/5MHz
Linear 7.5MHz/10MHz

Max Depth:305mm/100mm

Applications: bedside cardiac,ABD vascular
access. Breast, MSK, Nerve, Ocular,Small Parts,Anesthesia

C2L7 HD Ultrasound Probe

Transducer Type:Linear+Convex 1 transducer

Frequency: Convex 3.5MHz/5MHz
Linear 7.5MHz/10MHz

Max Depth: 305mm/100mm

Applications: Abdominal, Lung, Superficial,
Vascular,etc.

C7L7 HD Ultrasound Probe

Transducer Type: Linear+ micro-convex 1 transducer

Frequency: Microconvex: 5 Mhz/7Mhz,Linear: 7.5MHz/10MHz, R=20mm/88°,L=40mm

scanning depth: 20~80mm,60/90/120/160mm

Applications: MSK, Small parts, thyroid, carotid,
Lung, superficial, nerve, Urology, kidney, etc.

C7C3 HD Ultrasound Probe

Transducer Type: Convex + micro-convex 1 transducer

Frequency: Microconvex: 5 Mhz/7Mhz,R=20mm/88°,60/90/120/160mm
Convex: 3.5MHz/5MHz,R=60°,

scanning depth: 60/90/120/160mm

Applications: Small parts, thyroid, carotid, Lung,
superficial, ABD, OB/GYN,
Urology, kidney, etc.

Transducer Type: Convex + micro-convex 1 transducer

Frequency: Microconvex: 5 Mhz/7Mhz, R=20mm/88°,Convex: 3.5MHz/5MHz,R=60°

MaxDepth:60/90/120/160mm, 90~305mm

Applications: ABD, OB/GYN, Urology,
kidney,Small parts, etc.

Transducer Type:Linear + linear 1 transducer

Frequency:Linear probe: 7.5MHz/10MHz,L=40mm,

scanning depth: 20~100mm.

Applications: thyroid, carotid, nerve, Lung,
superficial, MSK, etc.

PA2L7 HD Ultrasound Probe

Transducer Type:Phased+Linear 1 transducer

Frequency: Phased array: 2.8MHz, R=80°,Linear: 7.5MHz/10MHz

scanning depth: 90~190mm,305mm/100mm

Applications: bedside cardiac,ABD vascular
access. Breast, MSK, Nerve, etc.

EC7C2 HD Ultrasound Probe

Transducer Type:Endocavity-Convex transducer

Frequency: Endocavity-6.5MHz/8.5MHz Convex 3.5MHz/5MHz,

MaxDepth: 100mm/305mm

Applications: Abdominal, OB/GYN, Urology,kidney, etc.

EC7L7 HD Ultrasound Probe

Transducer Type: Endocavity-Linear transducer

Frequency: Endocavity-6.5MHz/8.5MHz Linear 7.5MHz/10MHz,

MaxDepth: 100mm/100mm

Applications: Vascular, Lung. Breast, MSK, Nerve,
Ocular,Small Parts / Animals,Anesthesia

EL7C2 HD Ultrasound Probe

Transducer Type: transrectal- convex transduce

Frequency: Convex 3.5MHz/5MHz

MaxDepth: 100mm/305mm

Applications: Abdominal, OB/GYN, Urology,kidney, etc.

EL7C2 HD Ultrasound Probe

Transducer Type: transrectal- linear transducer

Frequency: Linear 7.5MHz/10MHz,

MaxDepth: 100mm/100mm

Applications: Vascular, Lung. Breast, MSK, Nerve,
Ocular,Small Parts / Animals,Anesthesia

Applicable Industries:
Healthcare Services, Medical Education, Telemedicine
Target Users:
Cardiologists, Emergency Physicians, General Practitioners/Internal Medicine Physicians, Obstetricians & Gynecologists, Urologists, Ultrasonographers, Anesthesiologists, Medical College Teachers & Students, Primary Care Practitioners
Usage Environments
• Hospital Departments: Bedside Diagnosis, Clinical Puncture Guidance, Multi-Site Physical Examinations
• Emergency Scenes: Outdoor Rescue, Emergency Treatment Rapid Assessment
• Community Clinics/Primary Care Centers: Routine Physical Examinations, Health Screenings
• Telemedicine Centers: Cross-Regional Medical Consultations
• Medical Colleges: Teaching Demonstrations, Practical Training
• Maternal and Child Health Institutions: Prenatal Examinations, Maternal & Child Health Management
