BPU20A vet
Endowed with BMV's advanced imaging technologies and optimum workflow, BPU20A compatible with Color is more thana new compact black and white portable ultrasound unit with comprehensive functions. iruly exceptional mage qualtycombined with professional diaanosis applications and ergonomic design help bring with you refreshing experience:confidence,accuracy and comfort.

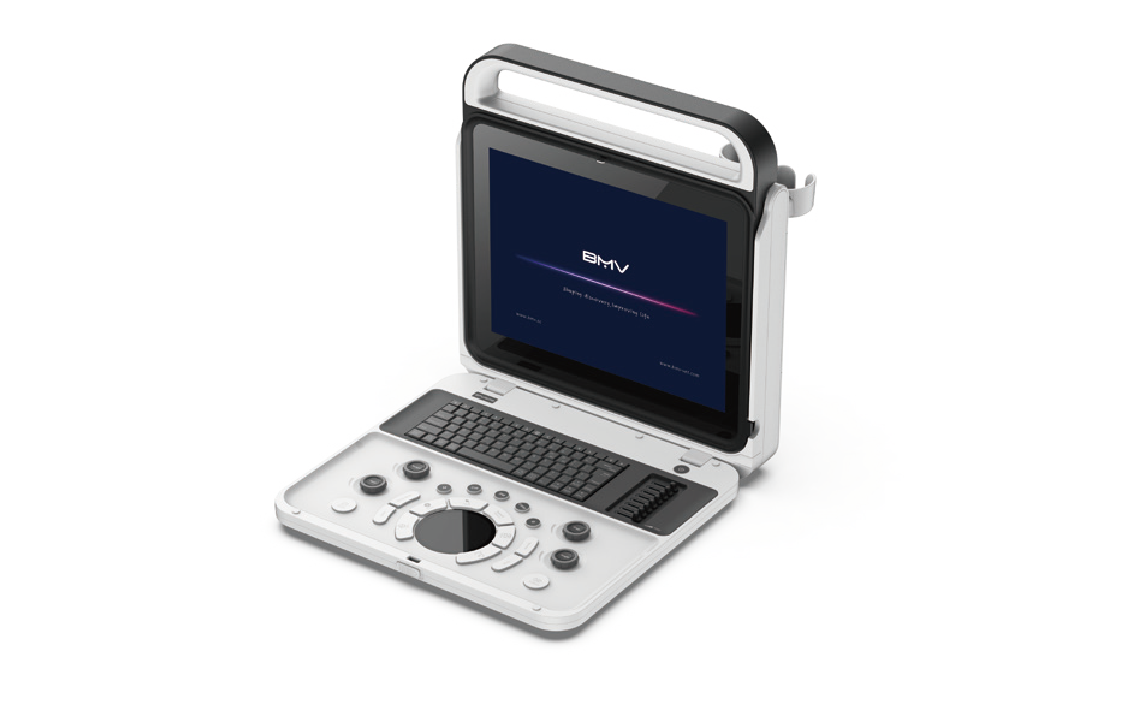

BPU20A
The BPU20A will go beyond your expectations but not your budget
32 phys. channels, compatible to HD probes and latest generation probes, convertiblemonitor,exchangeable battery.Light-weight and compact15-inch high definition 50° fold-able LED monitor with anti-glare, 180 degree openingangle screen suitable for indoor and outdoor use
Wide range of specialties including cardiovascular, radiology, OB/GYN, urology, small parts.
musculoskeletal,abdomen,vetennary etc.
Full patient database and image management solutions: DICOM 3.0, MP4/PG, USB2.0HDD.PDF report

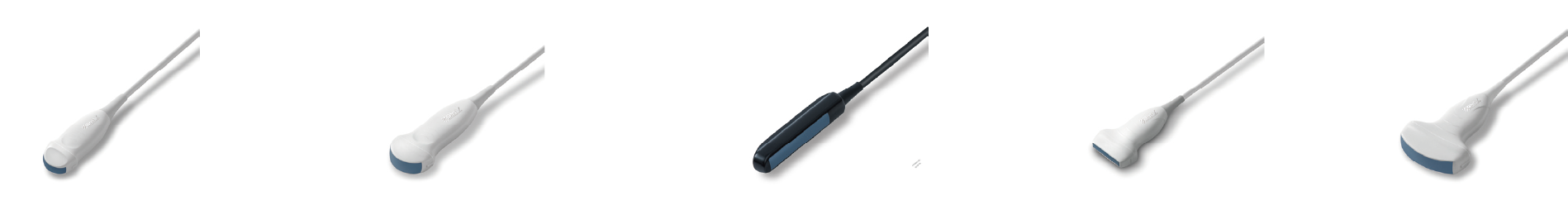

A comprehensive selection of probes HD Linear, HD Convex, Micro-convex, Endocavity.Exchangeable Li-ion battery for 7 hours scan function
Built-in Wi-Fi and Bluetooth wireless connection ensures files are up to date (optiona)
Up to 2 Transducer Ports
Specifications
15 inch LED high definition monitor
Dimensions(mainunit):338mm(W)*398mm(L)* 43mm(H)
Net weight:About 3.8kg
B&W mode: B, 2B, 4B, B+M, M, MM and PW Doppler
B mode: Distance,anglearea,volume, trace length,
distance ratio
M mode:Distance,time,slope, Heart Rate
Gray sacle: 256
Transducer frequency:2-12Mhz
Scanning depth:324mm
Battery lifetime: 8-12 hours
Software packages: Abdomen,OB(Cat,Dog, Horse, Bovine,Sheep),Cadiac,Small Parts
Transducer connector:Mini probe interface
Peripheral ports: 1 USB-C ports,1 Video port,1 power inlet
Power supply:100-240V~50/60Hz<100VA
Cine-loop:>340 frame cine loop memory
Zoom: Stepless zoom for the active image
THI: Tissue Harmonic Imaging
Print: Report print for text&graph&image
Accessories
Trolley
Backpack
Large Capacity Battery
Color ink-jet printer: HP Officejet Pro
B/W video printer: SONY UP-D897/SONY UP-X898MD
Footswitch
External DVD
Bluetooth Controller
BPU20A Vet
Color Performance. BPU20A B/ 32channels
ultrasound with Pwincluding B,2B,4B.B+M,M,PW modes
